No. Photo Wheel Arrang't Builder's No. & Year Status Location Notes & References
J & A Brown
4' 8.5" Gauge

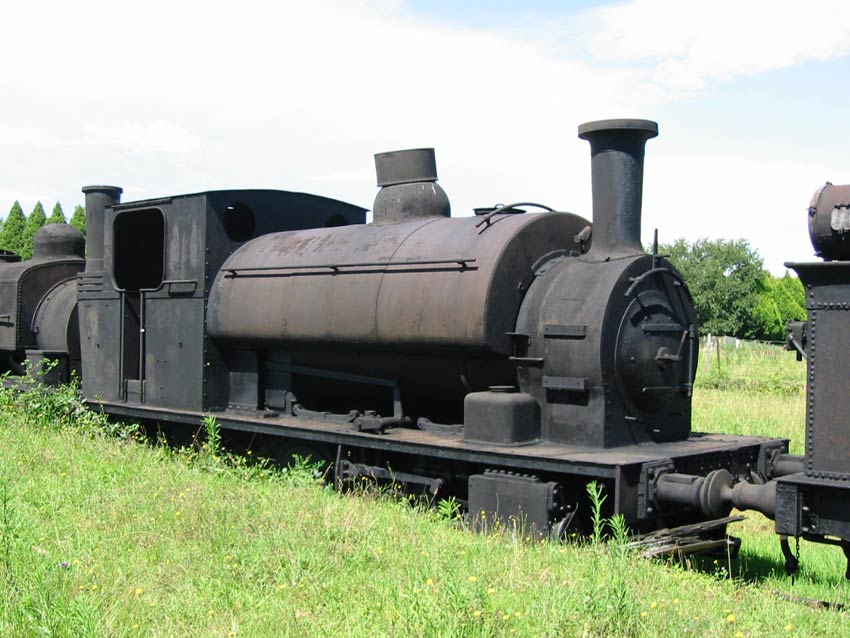

2 0-6-0ST Avonside 1916 of 1922 Stored DSR&M Dorrigo No. 2 was one of a pair of Avonside locomotives acquired in 1922 by Abermain-Seaham Collieries Ltd for use at Abermain No.2 & 3 Collieries, where they were known as 'Bristol Bombers'.  No. 2 ended it career in 1969 and was stored at Hexham until purchased for preservation in 1973.  This loco was the first preserved in connection with what became the Dorrigo Steam Railway & Museum, and accordingly is featured on the letterhead of the organisation. (54)  This photo of 24 January 2004 shows J & A Brown No.2 stored in black-oil at Dorrigo; unfortunately the Walschaerts valve gear is obscured in this view.
3 0-6-0ST Kitson 2236 of 1878 Stored DSR&M Dorrigo This historic locomotive was ordered by Brown as a copy of his favourite locomotive, No. 20N ('4' below) at NSWRTM. In time, Brown was also able to purchase the original 20N.  This photo of 24 January 2004 shows J & A Brown No.3 stored in black-oil in Dorrigo.
4 Refer to 20N from NSW Government Railways
5 0-6-4T Beyer Peacock 2601 of 1885 Stored NSWRTM Thirlmere J&A Brown No.5 was originally a condensing locomotive used on the Mersey Railway, Liverpool, prior to electrification of this underground railway in 1904. Four were sold to J&A Brown and overhauled in the UK (including removal of condensing gear) prior to shipment to Australia. No. 5 was derelict at Hexham for many years prior to being purchased for preservation by the NSWRTM in 1973. It was shunted into the storage sidings at Thirlmere in 1983, where it is seen in this view of 17 March 2003.  Of the other three imported to Australia, only the crank wheelset of No.8 also survives, on display at the Richmond Vale Railway.  A sister locomotive is also preserved in the UK.  UPDATE: No.5 was shunted into covered storage at the NSWRTM in late 2004, and a group of volunteers is intending to start cosmetic restoration of this interesting locomotive.
9 2-8-2T Kitson 4567 of 1908 Display Richmond Vale Railway, Kurri Kurri No.9 was originally named 'Pelaw Main'. This locomotive (and sister 10 below) have the appearance of a side-tank version of a ROD 2-8-0. (1)  No.9 and No.10 (below) ended their careers on the RVR's Hexham Washery shunt and the short trip to Stockrington Colliery.  In about 1976 they were replaced by SMR 10-class tank locos, and were placed into storage on the sidings at Hexham.  In 1982 they were transferred to the Richmond Main Colliery site of the Richmond Vale Railway Museum.  This photo (dated 27 April 2002) shows No.9 displayed at Richmond Main Colliery.

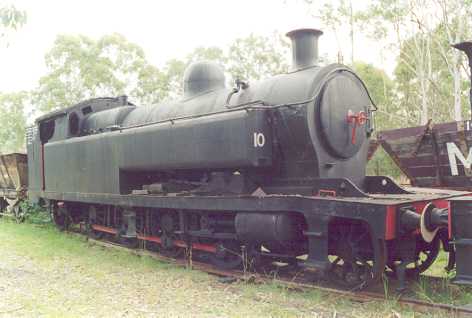

10 2-8-2T Kitson 4798 of 1911 Display Richmond Vale Railway, Kurri Kurri No.10 was originally named 'Richmond Main'.  (There was once a sister loco No.11 'Hexham', but unfortunately it was scrapped.)  No.9 and No.10 ended their careers on the RVR's Hexham Washery shunt and the short trip to Stockrington Colliery.  In about 1976 they were replaced by SMR 10-class tank locos, and were placed into storage on the sidings at Hexham.  In 1982 they were transferred to the Richmond Main Colliery site of the Richmond Vale Railway Museum. This photo (27 April 2002) shows No.10 displayed at Richmond Main Colliery.
20 2-8-0 North British 22042 of 1918 Stored DSR&M Dorrigo Ex- ROD 1984. This photo (courtesy of Mark Newton) shows one of the two ROD locomotives stored at Dorrigo during 1999.
23 2-8-0 Great Central Railway, built 1919 Workshops Richmond Vale Railway, Kurri Kurri Ex-ROD 2004.  No.23 had been plinthed at Freemans Waterholes, near Newcastle, until obtained by the Richmond Vale Railway about 1983.  No.23 is now under restoration to operation, but progress appears to be very slow due to finance constraints. (1)  This locomotive is sometimes reported as No.21 (Kitson 5201of 1918 - ROD 1615). This photo shows ROD 23 newly arrived at the RVR in 1984, and prior to its dismantling for overhaul.
24 2-8-0 Great Central Railway, built 1919 Stored DSR&M Dorrigo Ex- ROD 2003. This photo (courtesy of Mark Newton) shows the second of the two ROD locomotives stored at Dorrigo during 1999.
27 Refer South Maitland Railway No.2 (below)
South Maitland Railway Pty Ltd
4' 8.5" Gauge
2 0-4-0ST Avonside 1415 of 1900 Stored DSR&M Dorrigo Purchased by J & A Brown in 1934 and renumbered No. 27. (10) This photo of 24 January 2004 shows SMR No.2 in storage at Dorrigo.

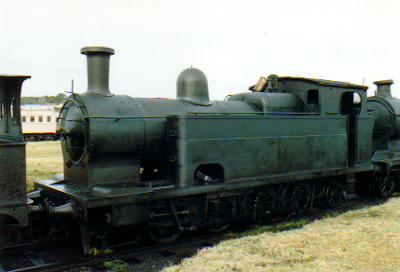

14 0-8-2T Avonside 1559 of 1909 Stored DSR&M Dorrigo Originally one of three '13-class' locomotives ordered by the SMR but sold in 1936 to the Hetton-Bellbird Coal Co.  Withdrawn in 1972 by Peko-Wallsend, Hexham. (10) This photo (courtesy of Mark Newton) shows SMR14 at Dorrigo in 1999, stored in black oil for weatherproofing.
10 2-8-2T Beyer Peacock 5520 of 1912 Workshop Former SMR Workshops, East Greta Builder's no & year as reported by McNicol (10).  SMR 10 is the class leader of the South Maitland Railway's 10-class, of which all 14 locomotives are now preserved. SMR 10 is owned by the Hunter Valley Training Company, East Greta, which is based in the former SMR workshops and running shed at East Greta, where it had previously been preserved operational. (1) This photo (courtesy of Mark Newton) shows SMR10 at the former SMR workshop at East Greta, in April 1995.  No. 10 is currently dismantled for overhaul at the Rothbury Riot Railway at Branxton in the Hunter Valley. (52 - page 27)
17 2-8-2T Beyer Peacock 5790 of 1914 Workshop Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10). SMR 17 is held by the Hunter Valley Railway Trust at the Rothbury Riot Railway, Branxton.  The loco was reported as under restoration and in Black livery. (53)  This photo is kindly provided by Anthony Winstone and shows SMR17 at the SMR East Greta depot in 1980.
18 2-8-2T Beyer Peacock 5909 of 1915 Workshop Bradken Rail, Braemar  (near Mittagong) Builder's no & year as reported by McNicol (10). SMR 18 received a new welded boiler in 1980, built by the SMR. (10) Now owned by the Hunter Valley Training Company, East Greta, and leased to 3801 Limited. This loco had been in use on 'The Cockatoo Run' - a regular tourist train from Wollongong up the Illawarra escarpment to Robertson, and generally housed at Eveleigh Workshops, Sydney in the period 1995 - 2003. Fitted with an extended smokebox and bunker to better suit this demanding role. (1) This photo (courtesy of Mark Newton) shows SMR18 at Delec, Sydney in 1995, prior to the extended smokebox being fitted. Update: On Wednesday 21st May 2003, SMR 18 was transported by road - three truckloads - from Eveleigh to the Bradken Rail works at Braemar, near Mittagong. There it will be rebuilt, and when completed it will be returned to the former SMR depot at East Greta, to be operated on the SMR line to Pelton. (40)
19 2-8-2T Beyer Peacock 5910 of 1915 Stored Kooragang Island (coal loader) Builder's no & year as reported by McNicol (10). SMR 19 had been placed on a raised plinthed at the Port Waratah Coal Loader, Newcastle from the early 1980's, displayed in lined black livery together with 3 ex-J&A Brown non-air coal hoppers and a brake van.  SMR 19 has likely deteriorated due to exposure to moist, salty air near the port. (1) SMR 19 has since been placed in storage at nearby Kooragang Island. (53)  This photo is kindly provided by Geoff Horne and shows SMR 19 plinthed at Port Waratah, Newcastle in the mid-1980's.
20 (Photo required) 2-8-2T Beyer Peacock 5998 of 1920 Stored Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10). SMR 20 is held by the Hunter Valley Railway Trust and stored at the Rothbury Riot Railway, Branxton. (53)
22 2-8-2T Beyer Peacock 6055 of 1921 Display Richmond Vale Railway, Kurri Kurri Builder's no & year as reported by McNicol (10).  SMR 22 had been in operation on Stockrington Colliery duties at Hexham during the 1980's, and was transferred to the RVR following the closure of Stockrington Colliery in 1987. (1)  This photo is kindly provided by Anthony Winstone and shows SMR 22 and 28 within the SMR East Greta loco depot in 1980.  The unusual water tank behind the locos is built on the tender frame of a very early NSWGR steam loco; this tender frame was subsequently used in the recreation of an appropriate tender for NSWGR loco M78 when that loco was restored in the late 1980's.
23 2-8-2T Beyer Peacock 6056 of 1921 Operational Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10).  SMR 23 is held by the Hunter Valley Railway Trust and stored at the Rothbury Riot Railway, Branxton. She wears blue livery and was steamed in 2003. (53)   This photo is kindly provided by Anthony Winstone and shows SMR 23 hauling a coal train in 1976.
24 2-8-2T Beyer Peacock 6125 of 1922 Display Richmond Vale Railway, Kurri Kurri Builder's no & year as reported by McNicol (10).  SMR 24 had been in operation on Stockrington Colliery duties at Hexham during the 1980's, and was transferred to the RVR following the closure of Stockrington Colliery in 1987. (1)  She now carries black livery with red lining. (1) This 1992 photo shows SMR 24 in operation on the RVR, but the loco has since been withdrawn and is now displayed at the RVR.
25 2-8-2T Beyer Peacock 6126 of 1923 Display Richmond Vale Railway, Kurri Kurri Builder's no & year as reported by McNicol (10).  SMR 25 had been in operation on Stockrington Colliery coal train duties at Hexham the 1980's, and was transferred to the RVR following the closure of Stockrington Colliery in 1987. (1) SMR 25 was then preserved operational at RVR during the early 1990's, and carries green livery with white lining. (1) This photo shows SMR 25 leading SMR 24, at the official RVR opening day in 1991. 'Marjorie' (refer NSW industrial locomotive list) is alongside with a demonstration coal train.
26 2-8-2T Beyer Peacock 6127 of 1923 Stored Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10).  SMR 26 is held by the Hunter Valley Railway Trust and stored at the Rothbury Riot Railway, Branxton, in black livery. (53)  This photo is kindly provided by Anthony Winstone and shows SMR 26 at the SMR East Greta loco depot in 1980.
27 2-8-2T Beyer Peacock 6137 of 1923 Workshop Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10).  SMR 27 is held by the Hunter Valley Railway Trust and is under restoration at the Rothbury Riot Railway, Branxton, in black livery. (53)  This photo is kindly provided by Chris Stratton and shows SMR27 shunting at the Hexham Coal Washery on 23 January 1984.
28 2-8-2T Beyer Peacock 6138 of 1923 Stored Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10). SMR 28 had been stored within the former SMR workshops at  East Greta. (1)  The loco has since moved the Rothbury Riot Railway, Branxton, and is stored in black livery. (53) This photo is courtesy of John Hurst; date: May 1973. Caption: 'SMR No.28 climbing the grade into Caledonia with an empty coal train.'
30 2-8-2T Beyer Peacock 6294 of 1926 Operational Richmond Vale Railway, Kurri Kurri Builder's no & year as reported by McNicol (10).  SMR 30 was one of 4 SMR 10-class locos that had been in operation on Stockrington Colliery coal train duties at Hexham until 1987. (1) SMR 30 has been restored to operation at the RVR in an attractive maroon livery, as seen in this photograph (kindly provided by Paul Bird) which shows SMR 30 with a non-air coal train as part of Coal Field Steam 2003 event at Richmond Main colliery on 8 June 2003.
31 2-8-2T Beyer Peacock 6295 of 1926 Stored Hunter Valley Railway Trust, Rothbury Builder's no & year as reported by McNicol (10).  SMR 31 is stored at the Rothbury Riot Railway, Branxton, in green livery. (53)  This photo is kindly provided by Chris Stratton and shows SMR31 and SMR22 at the South Maitland Railway's East Greta depot and workshop on 24 April 1983.
New South Wales Government Tramways
4' 8.5" Gauge
1A

(28A)

 0-4-0ST Baldwin ? of 1879

or

Henry Vale & Sons ? of ?

Display Powerhouse Museum ex-Sydney Steam Tram Motor.  I have been informed that the tram motor displayed by the Powerhouse Museum is not really No.1, but No.28A, which was built locally to the Baldwin design by Henry Vale and Sons. Possibly the reason for the subterfuge is that when the NSW tramways decided to preserve No.1 it was found to be in such poor condition as to make it only fit for scrap (18). Photo courtesy of Mark Newton shows 28A at the Powerhouse Museum, Ultimo, in 1994.
100 0-4-0ST Baldwin 11665 of 1891 Operational MOTAT Auckland, New Zealand ex-Sydney Steam Tram Motor. Exported to New Zealand for use at Wanganui in 1911.  (I had previously listed this steam tram incorrectly as 100A. I have since been informed the loco is number 100, not 100A, as the "A" suffix denotes conversion to one-man operation, which 100 never underwent. It still has only a single driving position on the right-hand side. (18). Photo courtesy of Mark Newton shows 100 newly restored at MOTAT.
103A 0-4-0ST Baldwin 11676 of 1891 Operational Valley Heights Steam Tramway ex-Sydney Steam Tram Motor.  103A was preserved operational for many years at the former Parramatta Park Steam Tramway until the arson attack at this museum in June 1993 destroyed most stock. 103A's wooden cab was incinerated at this time but the remainder of the loco was salvaged for restoration and moved to Valley Heights, where a new cab is under construction. (1)  Restoration is now expected to be completed by September 2005.  This photo, courtesy of Mark Newton, shows 103A in operation at Parramatta Park with an original steam tram trailer.
John Bull 0-4-0VB Beyer Peacock 2464 of 1885 Operational Critch Tramway Museum, Derbyshire, UK This historic locomotive was imported as a trial unit by NSW Government Tramways in 1885, for comparison against the Baldwin steam tram design (such as 28A, 100 and 103A above).  The Baldwin design prevailed and this engine returned to the UK in 1889  to become Beyer Peacock works shunter No.2.  The engine is thought to have been used on certain colliery and railway construction jobs in the Illawarra between 1887 and 1888, prior to its return to the UK.  "John Bull" is now preserved at the National Tramway Museum, Critch Tramway Village in the UK Midlands.  This photo is kindly provided by Chris Thompson and shows John Bull on display at Critch on 16 June 2007.  Chris has also provided photos showing the builder's plate and this information panel showing some history of this interesting steam tram survivor.
Other Industrial Users
4' 8.5" Gauge
South Bulli No. 4 0-6-0ST Avonside 1574 of 1909 Plinthed Corrimal (shopping district) Ex-South Bulli Colliery, where it was one of several similar Avonside saddletank locos.  A plaque mounted on the locomotive states 'This locomotive was in service at  South Bulli Colliery from 1909 to 1967. It was used to haul coal from the Colliery to the jetty at Bellambi Haven. This locomotive was donated by the Bellambi Coal Co. to the Lions Club of Corrimal for installation in this park as a community service project. It was officially presented by the club to the Council of the City of Greater Wollongong on 31 May 1969.'  This loco was taken off-site for stripping and repainting by the Council in 1999, and then re-plinthed. This photo of 19 March 2006 shows No.4 back at Corrimal, with its copper chimney cap and nameplate now missing. (1)  (This loco makes an interesting contract with its more modern Avonside sister shown at the top of this page, J & A Brown No.2.)

Kathleen

 0-4-0ST Avonside 1862 of 1921 Workshops Richmond Vale Railway, Kurri Kurri Kathleen had been displayed at the NSWRTM in attractive lined green livery, but the paintwork had become faded and rust-streaked from open-air display and in 1983 it was moved onto he long-term storage sidings.  In 1985 Kathleen was placed on long-term loan to the RVR. This 1985 photo shows Kathleen shortly after arrival at the RVR, in the industrial surrounds of the Richmond Main Colliery.  She has since been dismantled for overhaul, which is progressing slowly within the engine shed at Richmond Main colliery. (1)
Badger 0-6-0ST Australian Iron & Steel, built 1943 Stored DSR&M Dorrigo Ex-Australian Iron & Steel, Port Kembla.  This loco, and 'Bronzewing' below, were of a class of 8 used at the AIS steelworks for shunting duties including moving hot slag ladles to the lag dumps.  These locomotives were scrapped in Jan/Feb 1975 excepting the two saved for preservation. One reference lists this loco as actually 'Bantam', AIS built 1944, but carrying 'Badger's' nameplates. This photo (courtesy of Mark Newton) shows Badger at Dorrigo in 1999, propped on blocks and stored in black oil for weatherproofing. (Badger's wheels and motion were are also stored nearby.)
Bronzewing 0-6-0ST Clyde Engineering 457 of 1937 Operational BHP Port Kembla Ex-Australian Iron & Steel, Wollongong (Now BHP Steel Flat Products Division), Port Kembla.  Bronzewing had been displayed at the NSWRTM where it received a static restoration in the 1970's.  It later returned to the BHP Port Kembla steelworks, together with two end-platform carriages, and was restored to operation for special events connected with the steelworks.  Following the outsourcing of rail operations at the steelworks, Bronzewing and the two carriages returned to the NSWRTM on 27 June 2007.

Marjorie

 0-4-0ST Clyde Engineering 462 of 1938 Operational Richmond Vale Railway, Kurri Kurri Marjorie is an Australian-built copy of the classic Avonside design of shunting locomotive, and is very similar to 'Kathleen' (above).  Marjorie had been plinthed at Edgeworth, near Newcastle, during the 1970's.  It was acquired by the RVR and restored to operation in the early 1980's. (1)  This photo is kindly provided by Paul Bird and shows Marjorie in the industrial surroundings of the Richmond Main Colliery site of the RVR on 21 April 2006.  Here is an earlier photo from Paul Bird showing Marjorie within the historic running shed at the Richmond Main Colliery site of the RVR; the loco is in steam for its annual boiler exam on 12 February 2005.  Kathleen can just be seen under overhaul in the adjacent stall.
3 0-6-0T Barclay 1234 of 1911 Stored DSR&M Dorrigo Ex-Blue Circle Southern Cement, Portland. (12)  This photo of 24 January 2004 shows No. 3 in storage at Dorrigo.
5 (Photo required) 0-6-0T Barclay 1470 of 1916 Stored (?) Orange East Fork Depot (?) Ex-Blue Circle Southern Cement, Portland. (12)  I am not sure of the current location or status of this locomotive; any further information would be appreciated.

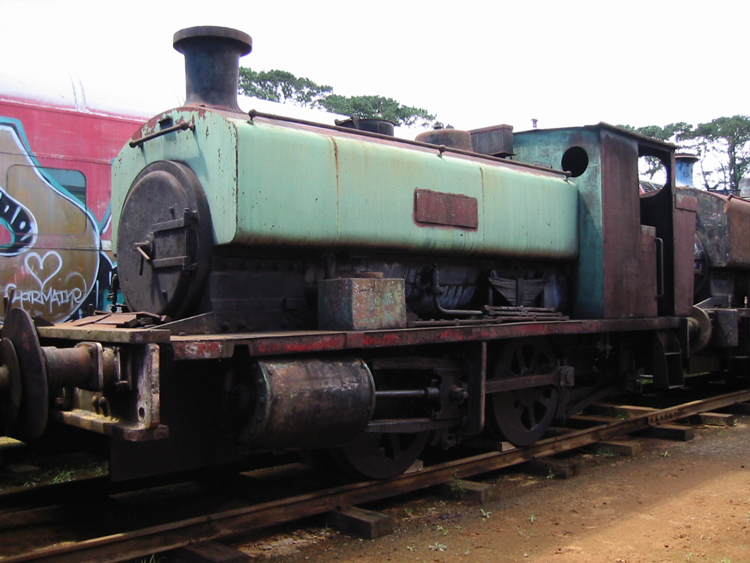

1 'Juno' 0-4-0ST Barclay ? of 1923 Stored DSR&M Dorrigo Ex-Commonwealth Steel Co Ltd, Newcastle.  This photo of 24 January 2004 shows Juno in storage at Dorrigo.

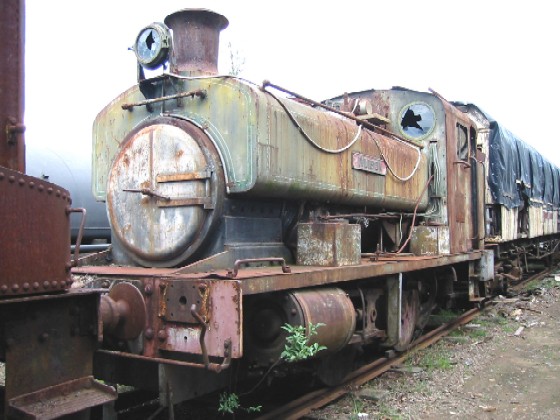

Alison 0-4-0ST Barclay 1738 of 1923 Stored NSWRTM Thirlmere Purchased second-hand but virtually new from the Silicate Construction Company of London by Goninan & Company, Newcastle NSW, and then resold to the operators of Cessnock No.1 Colliery at Kalingo. Sold to Lysaghts (steel rolling mill operators) in 1933 for shunting duties at their Newcastle plant, and later transferred to Lysaghts' Port Kembla operations. Donated to the NSWRTM in 1972 for display at the Enfield museum site. (36)  Moved to the NSWRTM's new Thirlmere site in 1974 where it was an attractive exhibit displayed in lined apple green livery. However the livery faded with exposure to the elements and Alison was shunted onto the storage sidings at Thirlmere in 1983, where it remains as seen in this photo of 17 March 2003. (1)  Alison is expected to be transferred to the Glenreagh Mountain Railway during 2005 for restoration to operation.
Marian 0-4-0ST Barclay 2224 of 1948 Stored DSR&M Dorrigo Ex-John Lysaght (Aust) Ltd, Wollongong.  Marian had been plinthed at Figtree (Wollongong) until obtained by the DSR&M.  This photo of 24 January 2004 shows Marian in storage at Dorrigo.

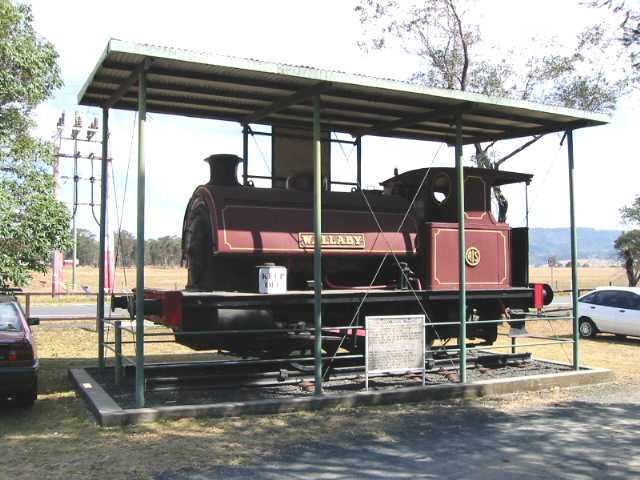

Wallaby 0-4-0ST Hawthorn Leslie 2988 of 1913 Display ILRMS, Albion Park Originally from Hoskins Ironworks, Lithgow.  More recently ex-AIS Port Kembla.  Had been plinthed at the AIS visitor's centre, Coniston until donated to the ILRMS in 1978. This photo shows 'Wallaby' plinthed at the museum gate under a weather-roof at the ILRMS in October 2002.
South Bulli 2 0-6-0T Hudswell Clarke 297 of 1888 Plinthed Bulli (Railway Station Museum) This locomotive may have originally worked on the Ringwood Colliery Railway, Bundanoon.  It  spent most of its life at South Bulli Colliery.  It was part of he NSWRTM collection at Enfield in the early 1970's but was not transferred to the NSWRTM's Thirlmere site in 1974, instead returning to the Illawarra region for display at the Illawarra Light Railway Museum at Albion Park.  In the late 1990's it was cosmetically restored and moved to Bulli Station for display at the local museum.  This photo shows South Bulli No.2 displayed at Bulli station on 19 March 2006.  (The display rails appear to be subsiding from the loco's front.) (1)
4 0-4-0ST Manning Wardle 1781 of 1911 Operational, Stored Powerhouse Museum This locomotive is a Manning Wardle "H-type" and was imported with sister B/N 1780 for railway construction on the North Coast, and later worked at the Potts Hill reservoir construction in Sydney.  It was last used by the Metropolitan Water Sewerage & Drainage Board at the Ryde Pumping Station in Sydney. It is similar to the preserved NSWGR locomotive 1021.  During 1985 No.4  was restored to operation under contract at the NSWRTM Thirlmere, as seen in this photograph.  Since then it has been stored at the Powerhouse Museum's workshop and storage facility at Castle Hill in the Sydney suburbs.  The Powerhouse Museum has recently expanded their Castle Hill site and provided limited opening to the public as the "Discovery Centre." This photo shows No.4 on display at the Discovery Centre on 14 July 2007, together with an information sheet displayed alongside the locomotive.
Possum 0-4-0ST Manning Wardle 1802 of 1912 Display Eskbank House Museum, Lithgow Originally from Hoskins Ironworks, Lithgow.  More recently ex-AIS Port Kembla. Photo of 3 November 2001 shows Possum preserved in the grounds of Eskbank House, Lithgow, where it had recently been repainted.
Corby 0-4-0ST Peckett 2047 of 1943 Stored DSR&M Dorrigo Ex-Tubemakers of Australia Ltd, Newcastle.  This photo of 24 January 2004 shows Corby in storage at Dorrigo.
4 0-4-0T Porter ? of 1915 Stored DSR&M Dorrigo Ex-Commonwealth Steel Co Ltd, Newcastle. Previously Ex-BHP Newcastle.  This photo of 24 January 2004 shows BHP No.4 in storage at Dorrigo.
16 0-4-0T Porter 6596 of 1920 Plinthed St Marys Following disposal by the BHP Newcastle steelworks, No.16 was sold to a gravel company at Penrith.  In preservation No.16 was operational at the NSWRTM and occasionally used as the museum shunter until the mid-1990's. It was then placed on loan to an organisation at St Marys and plinthed under a weather roof. It is located at the front of St Marys RSL club opposite Mc Donald's, Corner of Mamre Rd & Hall St.  This photo of BHP No. 16 is kindly provided by David Tickner.
2 'Stevo' 0-6-0ST Stephenson 2994 of 1899 Operational Valley Heights Steam Tramway Ex-Blue Circle Southern Cement, Portland. No.2 'Stevo' had been stored at the back of the shed at the Parramatta Park Steam Tramway for many years.  It was restored to operation under contract at the NSWRTM Thirlmere during 1993. Fortunately 'Stevo' had not returned to Parramatta Park Steam Tramway site at the time of the arson attack that destroyed the Parramatta Park site and much of the collection.  Stevo was later relocated from Thirlmere to Valley Heights, which had become the new base of the former Parramatta Park collection.  This photo is courtesy of Mark Newton and shows No.2 Stevo at Parramatta Park in October 1992, before moving to Thirlmere for overhaul.
1 0-4-0ST Vulcan Ironworks 2289 of 1914 Display NSWRTM Thirlmere Emu Gravel No.1 is very similar to NSWGR loco 1022, which is preserved at Valley Heights.  This photo shows Emu Gravel No.1 displayed in the grounds of the NSWRTM.
Wolgan Valley Shays C - type Lima Remnants Various The Wolgan Valley Railway in the NSW Blue Mountains is one of the most famous and dramatic of Australia's mountain railways.  Although the rails were lifted long ago it can still be appreciated and enjoyed as significant parts of the route remain available as a walking track through the Gardens of Stone National Park, including the 1:25 descent through the Glowworm Tunnel to Newnes.  Much has been written of this railway, including a description of the route selection and construction by the Engineer Henry Deane.  Four C-type shays once operated this line, and although the last remnants were dismantled for scrap around 1956 there are still some reminders of these interesting locos, such as this bell which is on display at the excellent Lithgow Mining Museum.  Another of the loco bells now rings in the tower of a church in Ainslie, Canberra.  Two tender tanks remain; one at Newnes station site, and another (filled with noxious tar) at the Glen Davis oil refinery site (clearly this one was adopted for static use when oil shale refining moved from Newnes to Glen Davis.)  Some scattered remnants of Shay No.1 possibly exist at the old Mt Constance engine shed site (I recall seeing a railway wheelset there in the early 1980's).  Finally, the main frames of No.1 were adopted by the railway to become a small bridge at the lower mouth of the Glowworm tunnel, where they remain to this day.
( - ) Climax B -type  Climax 1375 of ? Boiler only Kendall Climax 1375 we used by Longworth's sawmill tramway at Kendall, NSW, which featured wooden rails.  After the loco's final run in 1933, the boiler was adapted for static use in a sawmill. The boiler, smokebox and smokebox saddle of Climax 1375 are now displayed at Kendall, NSW (Port Macquarie region) as a memorial to the Longworth's mill and tramway, and part of the tramway formation has been opened as a walking track. This photo of 1 January 2004 shows the boiler displayed at Kendall. (1)
Silverton Tramway Company
3' 6" Gauge

Y1

2-6-0

Beyer Peacock 2971 of 1888

Display

Sulphide St Station Museum, Broken Hill

(8) Formerly displayed at the Railwaytown workshops. (1) Photo date 7/96; shows T181 (left) and Y12 (right) at Sulphide St Station Museum.

Y5/ Y3

 (Photo required)

2-6-2T

Beyer Peacock  3170 of 1890

Stored

Pichi Richi Railway, Quorn

 Y5 of the Silverton Tramway, but transferred to Sulphide Corporation Central Mine as a replacement for a locomotive destroyed in a collision. Transferred to the Whyalla steelworks in 1940 and renumbered Y3. (8) Was plinthed at Whyalla on the foreshore. Obtained by PRR in 1983. (9) Currently kept in the long term storage shed at PRR awaiting restoration. Platework was very badly corroded by the salt air at Whyalla.  (1)

Y11

2-6-0

Beyer Peacock 3535 of 1893

Plinthed

Silverton (near Broken Hill)

 (8) Y11 is displayed in the grounds of a caravan park in the historic township of Silverton, on the route of the former Silverton Tramway.  Y11 is preserved in lined green livery with some later features such as a stovepipe chimney and lead ballast weights on the running board, as seen in this slide image kindly provided by Ken Kimmins which shows Y11 at Silverton in approximately 1996.  Ken also provided this image of the Y11 information board which provides some history of the locomotive.  The old Railway Station at Silverton is also preserved. (1)

Y12

2-6-0

Beyer Peacock 3536 of 1893

Display

National Railway Museum, Port Adelaide

 (8) This photos is dated 20 July 2002 shows Y12 displayed at the Port Dock museum.

A21

4-6-0

Beyer Peacock 5913 of 1915

Display

National Railway Museum, Port Adelaide

 A21 is the survivor of a class of  4 locomotives built by Beyer Peacock and Co. (8)   The Silverton A class are effectively a passenger version of the TGR E class 4-6-0 (refer to  preserved TGR loco E1).  This photo is dated 20 July 2002 shows A21 displayed in lined black livery at the National Railway Museum, Port Adelaide. (1)

W22

4-8-2

Beyer Peacock 7418 of 1951

Stored

Pichi Richi Railway, Quorn

 Named 'Justin Hancock' in service. (8) The Silverton Tramway W-class were copies of the West Australian W-class locomotives, the major difference being a skyline cowling along the boiler top. W22 was previously displayed at the Puffing Billy Museum, Menzies Creek, Victoria as per this 1970 photo which is kindly provided by Anthony Winstone. After many years of static display at Menzies Creek, W22 was transferred to the Pichi Richi Railway, SA for restoration to operation.  However upon detailed inspection at the PRR it was discovered to be in poor mechanical condition, and instead WAGR loco W916 has been restored to operation as Silverton W22, apparently using some W22 parts (probably the skyline cowling).  The real W22 is seen in this 11 June 2000 photograph stored in the workshops at PRR, stripped of cowling and boiler clothing.

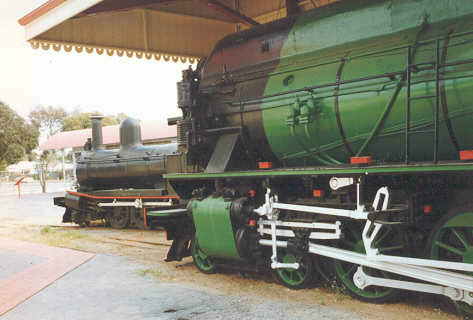

W24

4-8-2

Beyer Peacock 7553 of 1951

Display

Sulphide St Station Museum, Broken Hill

 Named 'Malcolm Moore' in service. (8) Same basic design as West Australian W-class locomotives.  Preserved in original lined green livery. (1) Photo date 7/96; shows W24 and Y12 at Sulphide St Station.

W25

4-8-2

Beyer Peacock 7554 of 1951

Display

National Railway Museum, Port Adelaide

 Named 'Thomas B Birbeck' in service. (8) Same basic design as West Australian W-class locomotives.  Photo dated 20 July 2002 shows W25 displayed at the Port Dock museum in an original lined green livery. (1)
Other Users
3' 6" Gauge
Climax Climax B-type Climax 1653 of 1923 Display Tasmanian Transport Museum, Glenorchy, Hobart, Tasmania This locomotive was originally ordered by a New Zealand firm but by 1925 was working for Pines and Hardwoods Ltd near Simmsville, NSW, where it worked with other Climax locomotives and was named Soward. (45)  In 1939 it was sold to Australian Newsprint Mills Ltd for use in Tasmania's Derwent Valley.  The locomotive was abandoned near Maydena around 1949 and became derelict, but was donated by Australian Newsprint Mills to the TTM in 1977. (45) A visit to the TTM in 1993 found Climax 1653 unrestored and in storage at the rear of the museum, but the locomotive has since received a thorough static restoration and is now displayed in the replica roundhouse, as seen in this photo of 30 April 2003. (1)
Lloyd Copper
3' Gauge
2 (Photo Required) Shay B-type Lima 2576 of 1912 Stored, dismantled Melbourne This locomotive was one of two Shay locomotives used by Lloyd Copper at their Burraga works near Oberon. This locomotive is listed on Shaylocomotive.com under the 'survivors' section as being privately owned and stored (minus trucks) in Melbourne since 1962.  I have also received information that it is stored dismantled.  Any further information or photograph of this interesting survivor would be most welcome.
Burrinjuck Tramway
2' Gauge
Kate - 0-6-0T Fowler 8762 of 1901 Drowned Burrinjuck Dam Apparently originally owned by Colonial Sugar Refining, later used in construction of Cataract Dam.  Last used hauling river sand in connection with Burrinjuck Dam construction. Disposal details are not recorded and the loco is rumoured to have been abandoned and drowned under the new dam waters in 1928.  No trace of the loco has been found during drought times of low water in the dam, however the likely abandonment area (presumably the loco shed near the dam wall) was in deep water even in these times.
Dulce 0-6-0T Krauss 5869 of 1907 Stored, dismantled Kallangur (north of Brisbane), Qld Ex-Burrinjuck Tramway, later ex-North Eton Mill No.5.  Dulce was built as a 0-4-0T, but converted to 0-6-0T in 1937 after leaving the Burrinjuck Tramway. Dulce had been plinthed as a park engine, as seen in this photo kindly provided by Anthony Winstone. Dulce is now privately owned and stored dismantled and derelict at Kallangur, as seen in this photo of 12 April 2003 showing the frame, cab and tanks of 'Dulce' being engulfed by long grass. (1)
Robin - 0-4-0T Krauss 5870 of 1907 Buried Kiama Ex-Burrinjuck Tramway. Robin's final user was the NSW State Metal Quarries, Kiama, where the loco was apparently buried on site after 1938.
Jack 0-4-0T Krauss 5945 of 1907 Stored Burrinjuck Dam Ex-Burrinjuck Tramway, later Fairymead Sugar Mill, Qld.  Following retirement from Fairymead Mill in about 1964 , 'Jack' became an operational exhibit at the Marsden Steam Museum, Goulburn, providing trips along the 1km demonstration line which ran to the Museum gates. The steam locomotive collection at Goulburn was reduced during the late 1970's and 1980's, and Jack was sold in approximately 1984.  It was then proposed as a working exhibit at Burrinjuck dam, and partially dismantled for assessment, but the boiler was found to be in poor condition and the overhaul did not proceed.  Jack as been since been stored in a shed at Burrinjuck (with the boiler resting at an angle in the frames) but is not available for public viewing. This photo of 17 January 2004 shows Jack in storage at Burrinjuck Dam. (1)
Archie 0-4-0T Krauss 6063 of 1908 Display NSWRTM Thirlmere Ex-Burrinjuck Tramway, later Farleigh Mill, Qld.  This photo shows Archie displayed in the NSWRTM forecourt, where it has stood since the Thirlmere site was established in 1974. (1)
Other Users
2' Gauge

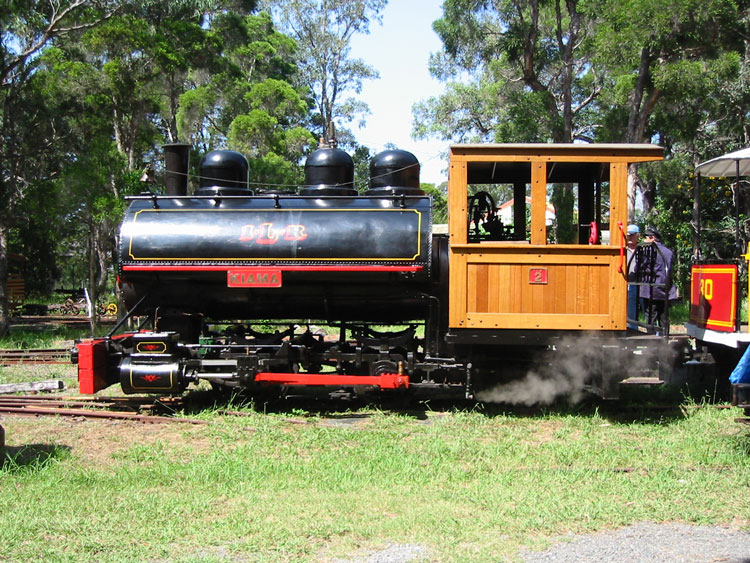

Kiama (PWD No.65) 0-4-0ST Davenport 1596 of 1917 Operational ILRMS, Albion Park 'Kiama' was originally from the Cordeaux Dam construction project.  It contains parts from sister engine Davenport B/N 1517 of 1915. This photo (and a side view) show 'Kiama' in steam at the ILRMS open day on 19 March 2006.
Burra 0-4-0ST Hawthorn Leslie 3574 of 1923 Operational ILRMS, Albion Park Ex-Corrimal Colliery. This photo shows 'Burra' in steam at the ILRMS open day on 19 March 2006.  Here is a view of the builder's plate taken on the same day.
Newbold

(1024)

 0-4-0PM Originally Krauss 2179 of 1889 Operational (Petrol) ILRMS, Albion Park This locomotive was originally NSWGR Lo.43, and later renumbered 1024.  It was rebuilt as a petrol locomotive in 1939. Stephen Tolhurst provides an excellent history of Newbold / 1024 on his X10 website. This photo is kindly provided by Jason Gundlach and shows Newbold in operation at the ILRMS on 9 October 2004.  Here is a photo of the builder's plate, which is also displayed at the ILRMS museum at Albion Park.
( - ) (Photo required) 0-4-0T Krauss 6927 of 1914 Frame & wheels only Sydney suburbs (privately owned) Ex-Corrimal Colliery. These remains were retrieved from Corrimal Colliery in the early 1970's.  Apparently they were in private ownership and possibly kept at the ILRMS, Albion Park.  I believe they have since moved to a private location in the Sydney suburbs.  Further information is welcome.
PWD 35 0-4-0T Fowler 16089 of 1923 Workshop ILRMS, Albion Park This locomotive was originally PWD No.35 and had worked on the gravel railways around Kiama.  It is sometimes referred to as 'Wollondilly'.  It has been associated with various proposals for establishment of a tourist railway at Kiama.  PWD 35 was at the Goulburn Museum of Historic Engines from 1958 to 1974 and had some operation in that period.    This photo shows PWD 35 in storage at the ILRMS open day on 19 March 2006; I understand that it requires some repairs.  (1)
