Fyansford No.2 Beyer-Garratt built to WAGR Ms-class design |
|
Fyansford No.2 stored in the car barn at the Bellarine Railway
on 10 October 2013.
|
Builder |
Beyer
Peacock & Co, Manchester |
|
Builder’s Number & Year |
6935 of 1939 |
|
Wheel Arrangement |
2-6-0 + 0-6-2 |
|
This Beyer-Garratt locomotive is
one of the more interesting Australian Steam survivors and has a significant
pedigree. It was one of two 2-6-0 + 0-6-2 locomotives built new for
Australian Portland Cement, Fyansford as essentially a repeat order of the
Western Australian Government Railways (WAGR) Ms-class design. The WAGR
M-class were introduced in 1912 as only the third Beyer-Garratt type in the
world, and the first ordered in any quantity with 6 locomotives delivered.
Beyer Peacock & Co later supplied an additional 7 locomotives to the WAGR
fitted with superheaters and known as the Ms-class, and design was further
developed in 1930 with a further 10 members built at the WAGR Midland
Workshop as the Msa-class. The two Fyansford locomotives were
constructed by Beyer Peacock & Co, with No.1 (builder's no. 6794 of 1936)
followed a few years later by No.2 (builder's no. 6935 of 1939). These
locomotives were built to the WAGR Ms-class design but with boiler pressure
increased from 160psi to 180psi, a more modern superheater and minor changes
such as an improved cab. Interestingly, the Victorian Railways had also
essentially copied the WAGR Ms-class with their order for Beyer-Garratts G41
and G42, although these were built to 2' 6" gauge with driving wheels
within the frames. Unfortunately the WAGR M/Ms/Msa-class Beyer-Garratts became extinct with the
accidental scrapping of Msa 496 which had been
retained at Midland Workshops, Perth for intended preservation. Today the
preserved Fyansford No.2 remains as a close link to that important WAGR
design in the evolution and ultimate success of the Beyer-Garratt type of
locomotive. Australian Portland Cement at
Fyansford operated a 3' 6" haulage line between their limestone quarry
and the cement processing plant at Fyansford. Over the years they collected
an interesting assortment of locomotives to operate this line, ranging from
diminutive shunting locomotives to the two 2-6-0 + 0-6-2 Garratts and
culminating in G 33, the only survivor of the Australian Standard Garratt 4-8-2
+ 2-8-4. This interesting locomotive fleet made a contrast to the 5' 3"
and 2' 6" operations of the Victorian Government Railways, and the
Fyansford site became well known to steam locomotive enthusiasts. The
Australian Portland Cement Fyansford railway was rendered obsolete in 1966
when replaced by a conveyor belt system, and the donation of the surviving
fleet of APC locomotives represents one of the most significant moments in
Australian steam locomotive heritage. The preserved locomotive Fyansford
No.2 carries the engine units from sister No.1, Beyer Peacock & Co.
builder's No. 6794 of 1936. Photos taken in 1966 show the boiler cradle and
cab of the sister in storage outside the APC running shed, and evidence
suggests the best parts of the two locomotives had been combined to make one
operable by that time. The boiler of No.1 also survived and was overhaul and
fitted to Puffing Billy's G42 during in
the 1990's in the final stages of its protracted restoration. Fyansford No.2 was statically
displayed for many years under a weather roof at the Puffing Billy Museum at
Menzies Creek. Together with a number of other locomotives from the Menzies
Creek collection, it was transported to the Bellarine Railway on 7 June 2010 and is now stored at
Lakers Siding. The majority of photos on this page date from the webmaster’s
visit to the Bellarine Railway on 10 October 2013; alas my camera struggled
with the low light levels in the carriage shed (leading to its replacement
with a better SLR shortly afterwards!). During this trip I was intrigued to discover
surviving components of the second Fyansford Garratt also stored at the
Bellarine Railway; apparently the number plates, builders plates and portions
of the cab and backhead fittings had been retained at Fyansford as a display
and these had also been donated to the Bellarine Railway in recent years. Hopefully this interesting and significant Beyer-Garratt locomotive
will one day be restored to operation. |

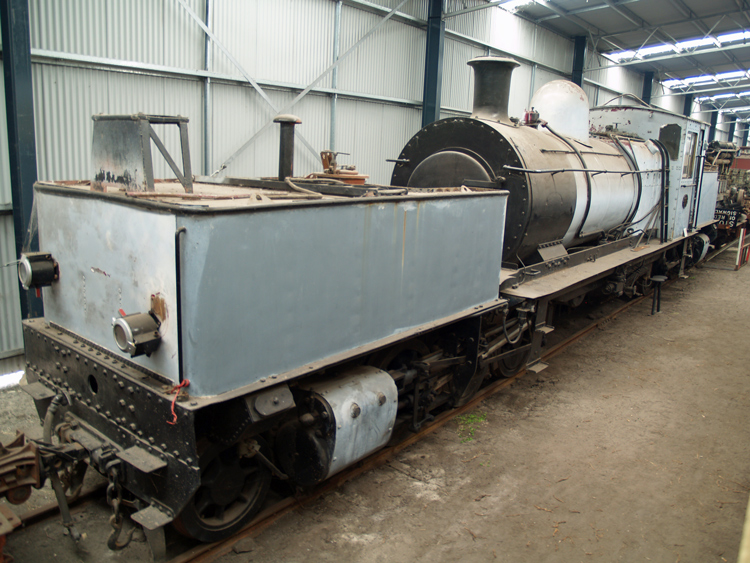

Front view. One of the two maker
lights on the front tank is dangling!

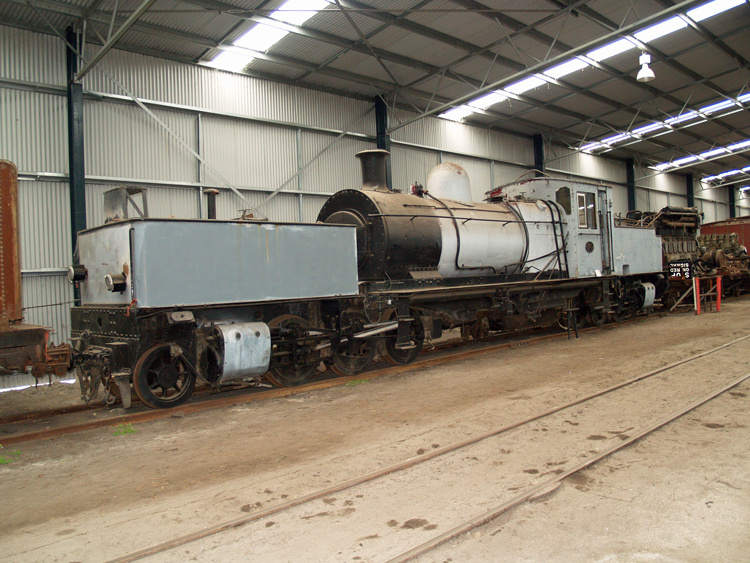

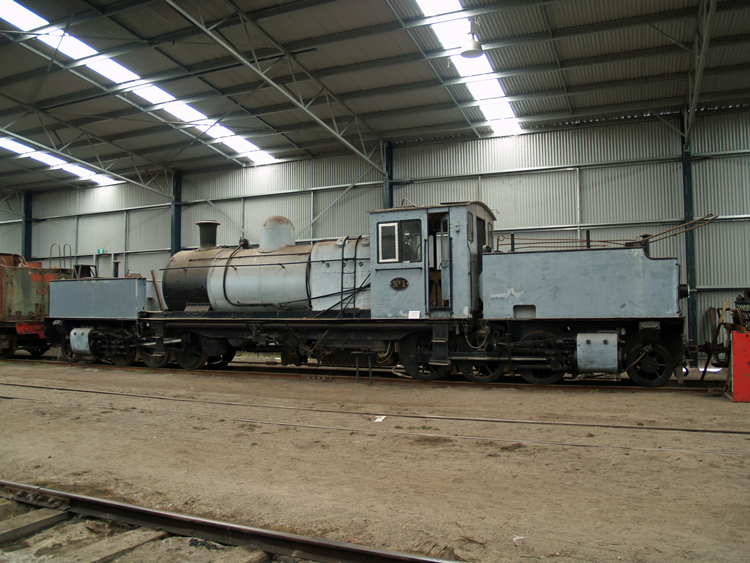

Side view

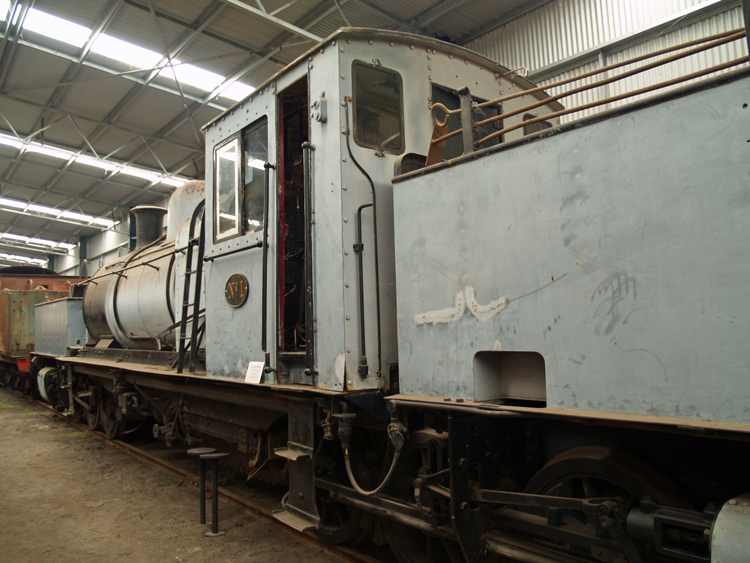

Rear view. A full set of fire irons
are racked above the coal space.

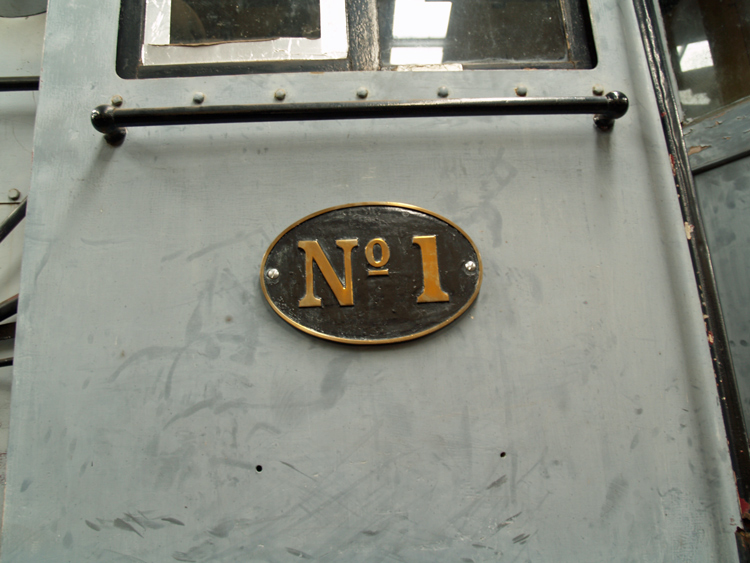

Cabside & number plate. The two fixing holes for the builder’s plate
are below.
The ‘No.1’ plate is attached but
Beyer-Garratt locomotives take their identity from the boiler cradle, which I
believe is from No.2.

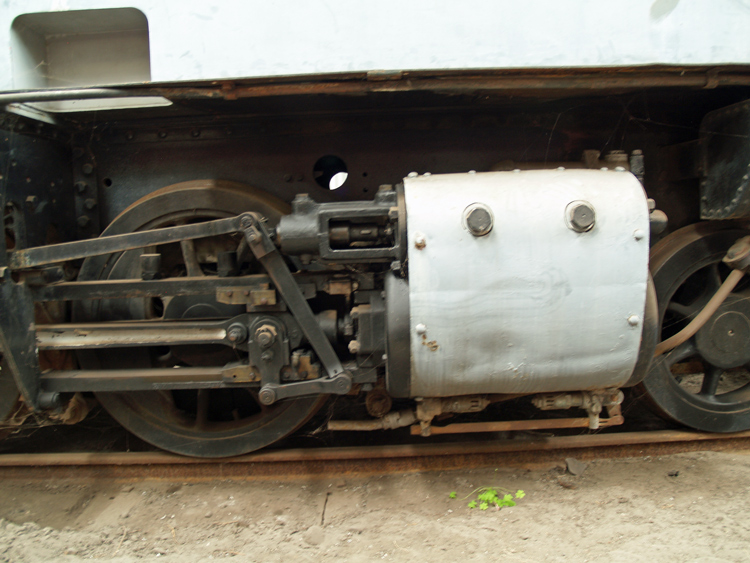

Cylinder detail

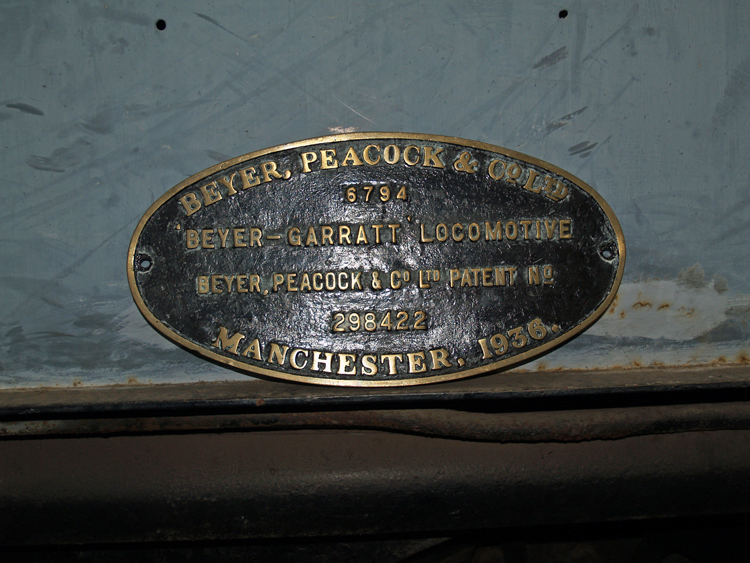

Builder’s plate for Beyer-Peacock
B/n 6794 (resting on the footplate, below the two fixing holes) – This plate
belongs to Fyansford No.1.

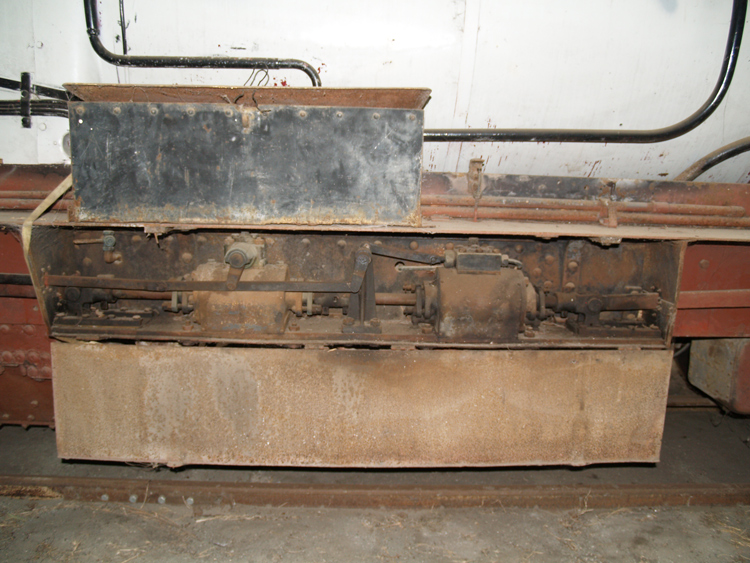

Detail of the reversing mechanism
(with the box that normally encloses this machinery opened).

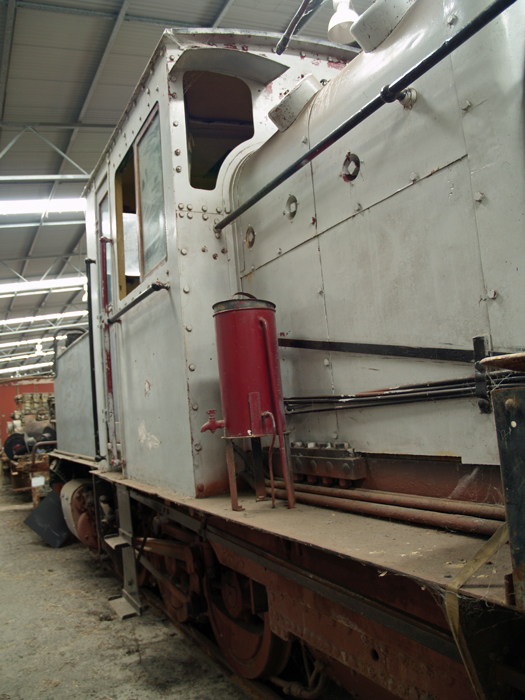

This red canister with a small steam inlet seems to be an urn fitted on
the footplate!
Did this Fyansford loco have an auxiliary
purpose dispensing cups of tea around the mine site!

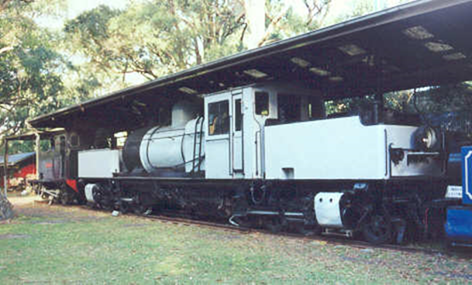

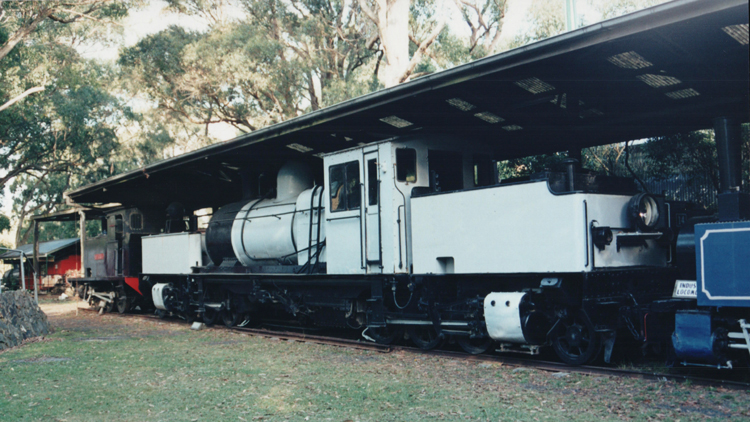

This much earlier
scanned photograph shows the Fyansford Garratt at the Puffing Billy Museum,
Menzies Creek in 1996.
References
|
a |
‘Garratt Locomotives of the World’
by A. E. Durrant, published by Bracken Books, London, 1987 |
|
b |
Information provided by D. Price via email dated 27 January 2011. |
